Level 1 dynamic energy saving: circuit off when no signal; Level 2 black screen saving: current drops from 6mA to 0.6mA; Level 3 full-screen saving: static consumption drops to 0.5mA after 300ms low level; Level 4 shunt power supply: reduces forward voltage drop and internal resistance.
Refresh rate up to 3840Hz, 16bit grayscale. Display is realistic, delicate, and grain-free. Viewing angle reaches more than 140° with excellent consistency.

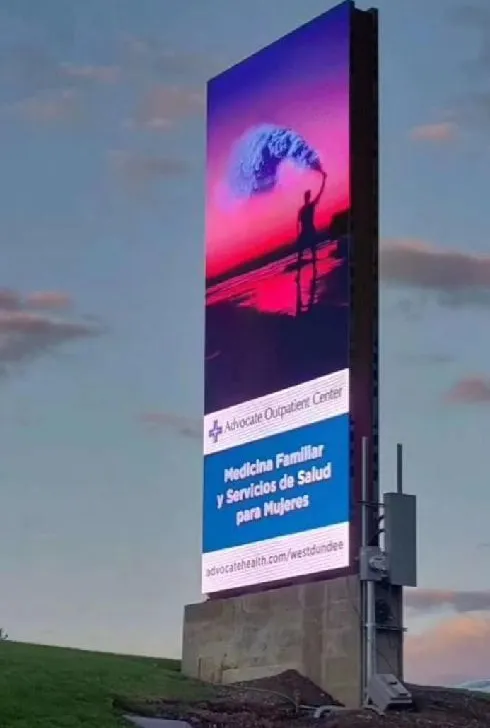

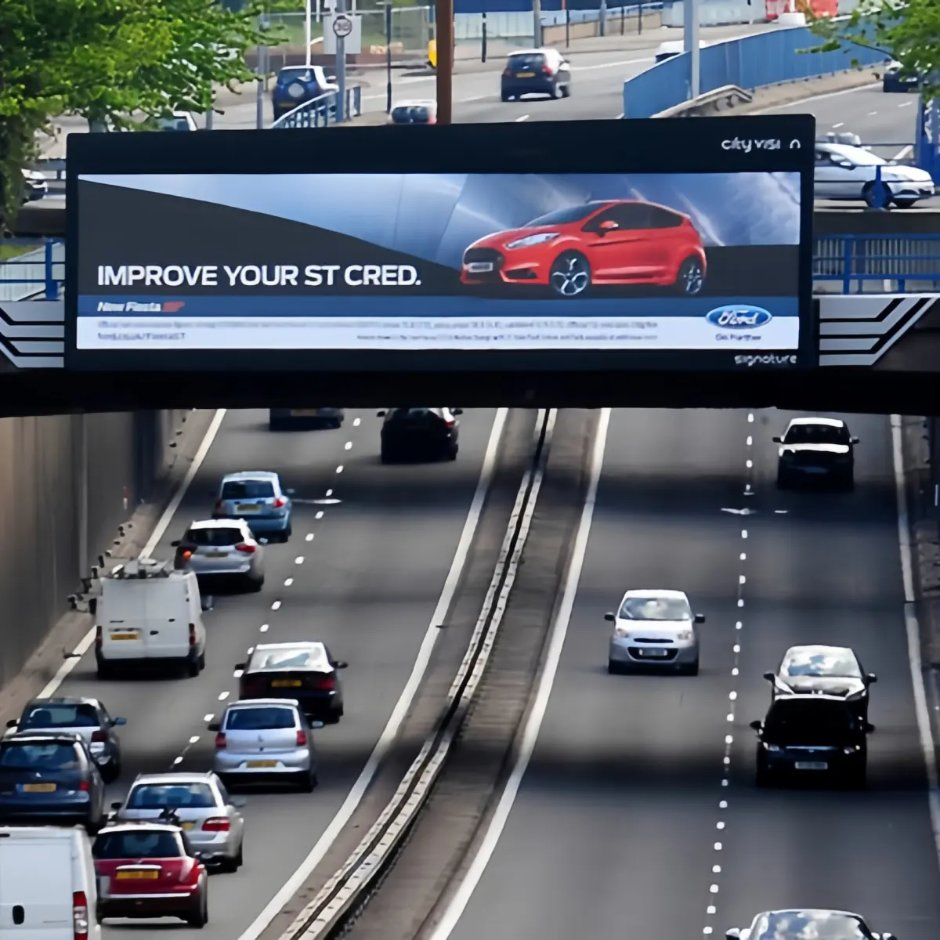

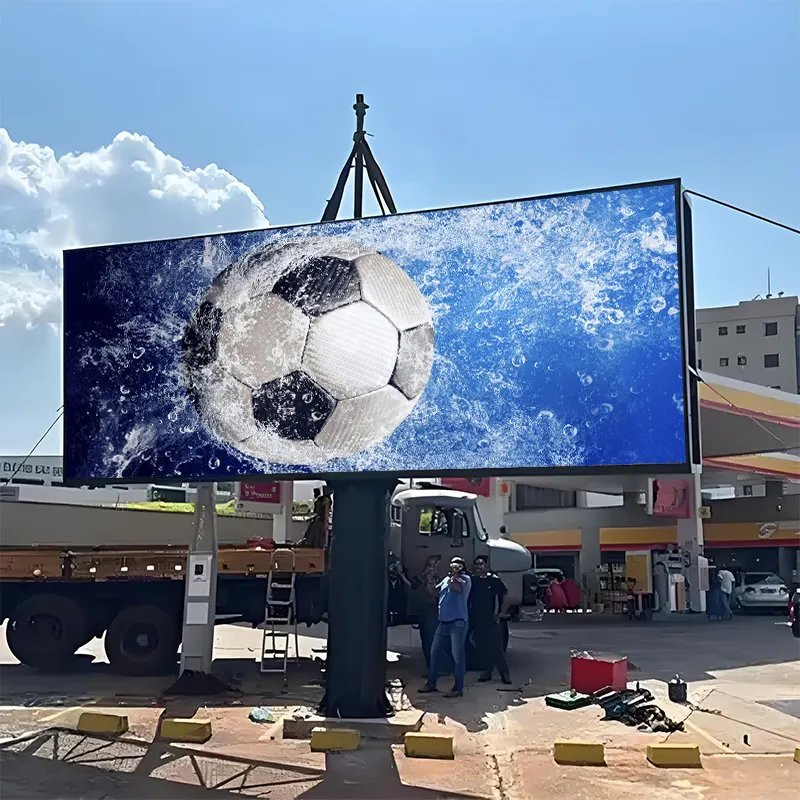

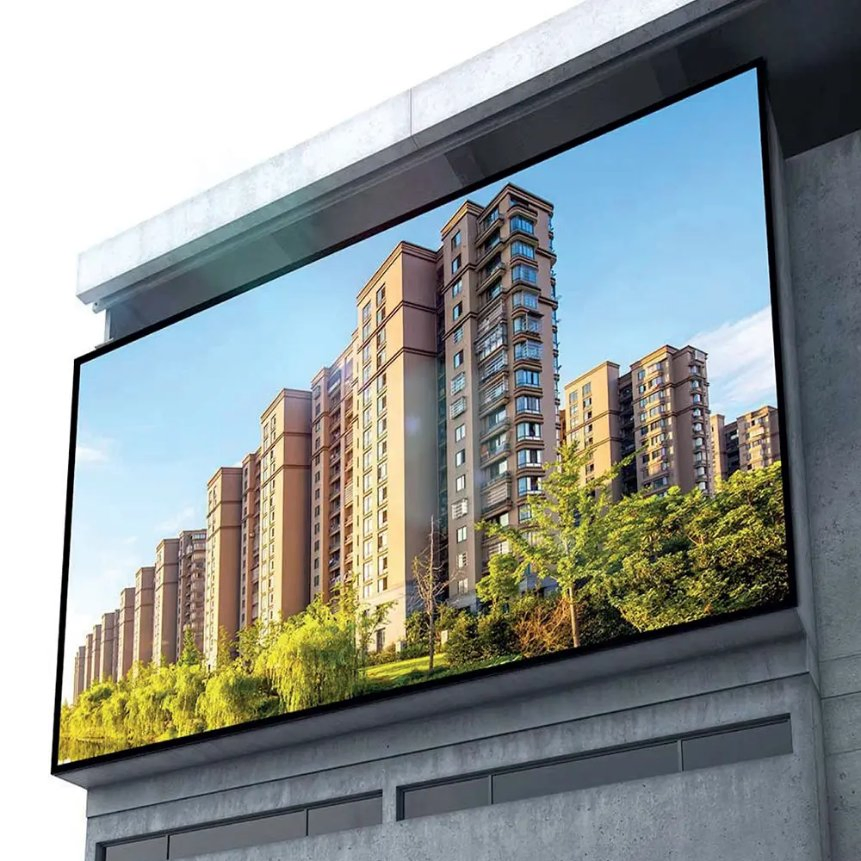

Supports floor, hanging, and wall mounting. Modular design for module, case, and power box. Front and rear maintenance available with structureless installation to save costs.

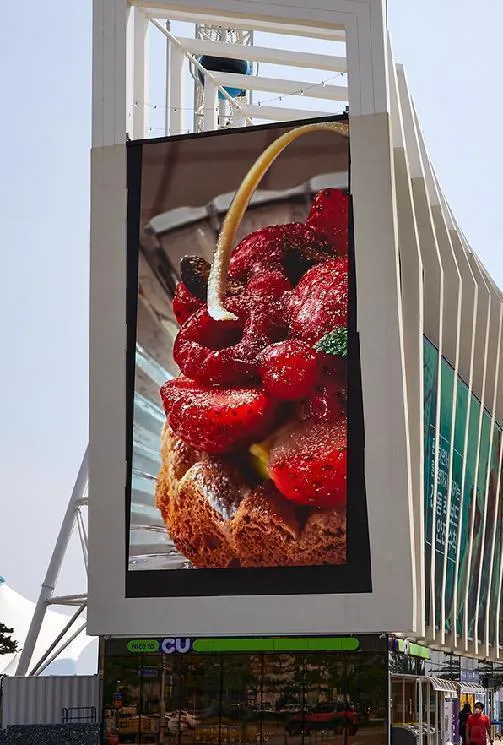

IP66 protection grade with integrated all-aluminum design. Corrosion-resistant, moisture-resistant, and salt spray resistant. Operates normally from -40ºC to 80ºC.
Ultra-low temperature rise and power consumption. Aluminum modules provide excellent thermal conductivity, eliminating the need for air conditioning.
| Parameter Name | P4.4 | P5.7 | P6.6 | P10 |
| Pixel Structure (SMD) | 1921 | 2727 | 2727 | 3535 |
| Pixel pitch (mm) | 4.4mm | 5.7mm | 6.67mm | 10mm |
| Module resolution (W×H) | 108*72 | 84*56 | 72*48 | 48*32 |
| Cabinet size (mm) | 960*960*90 | 960*960*90 | 960*960*92 | 960*960*92 |
| Brightness (cd/m²) | 5000 | 5500 | 7500 | 7500 |
| IP Rating | IP66 | IP66 | IP66 | IP66 |
| Refresh Frequency (Hz) | 3840 | 3840 | 3840 | 3840 |
