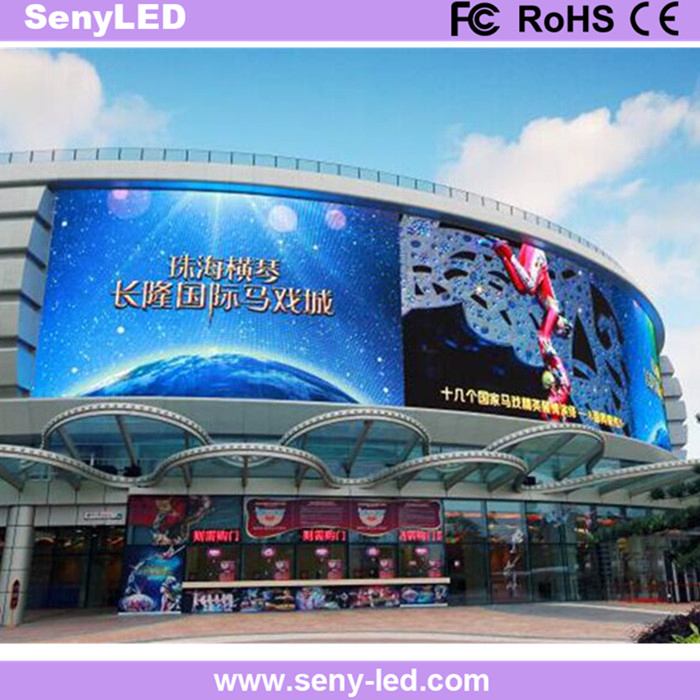

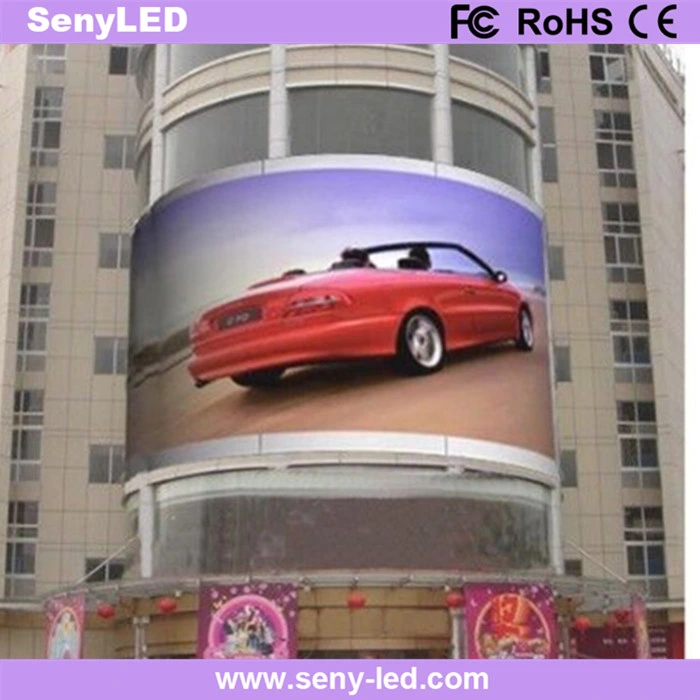

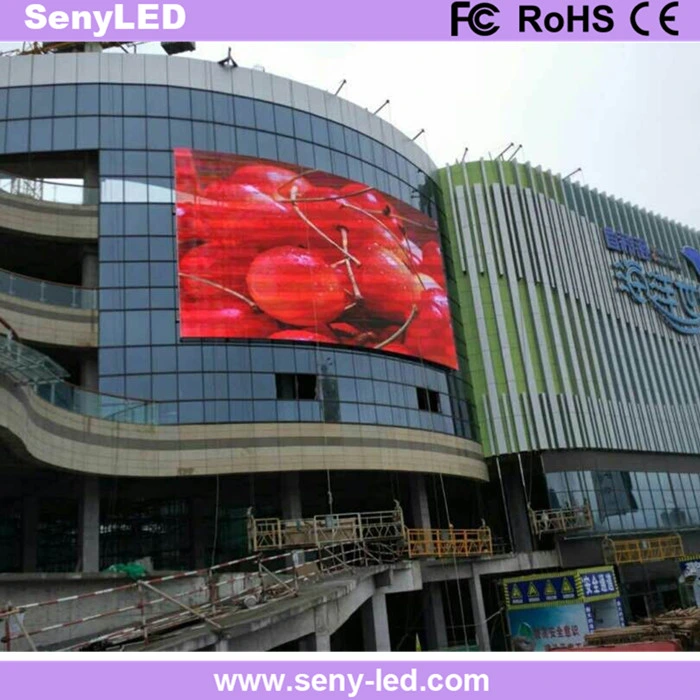

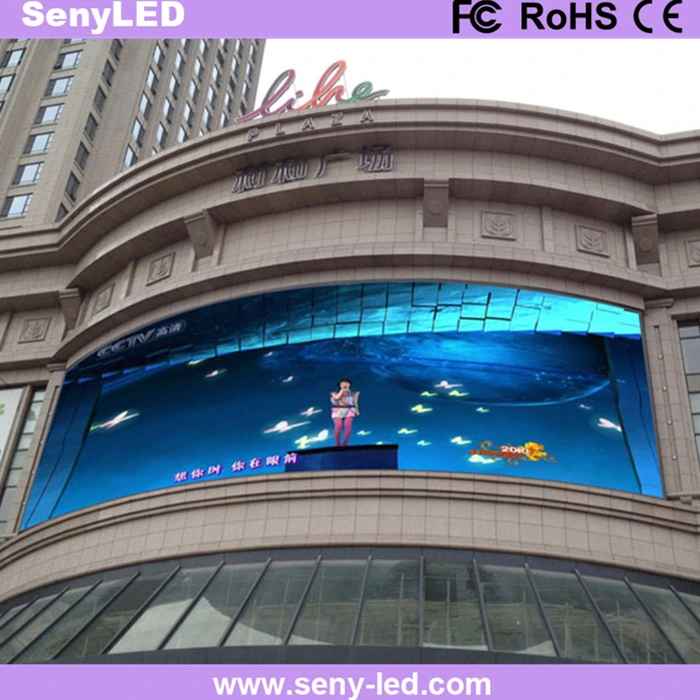

Full Color Outdoor LED Display in Curve
Vivid and exact picture, minimum noise, and support for any PC operation system to play video, word, flash, music, clock, and graphs.
High brightness with automatic adjustment support to adapt to different environment conditions.
Durability reaching more than 100,000 hours with power consumption lower than one-tenth of traditional lamp or neon.
Easy and simple installation interface with user-friendly software to ensure smooth system operation.
| Technical Parameters - Full Color Outdoor LED Display | |
|---|---|
| LED Parameters | |
| LED Type | SMD3535 (Red, Green, Blue) |
| Brightness (R/G/B) | 600-800mcd / 1800-2000mcd / 400-600mcd |
| Wave Length (R/G/B) | 620-625nm / 520-525nm / 470-475nm |
| H/V Visual Angle | 140º/120º |
| Module Specifications | |
| Pixel Pitch | 6mm |
| Module Resolution | 32 x 32 pixels |
| Module Size | 192mm X 192mm |
| Cabinet Specifications | |
| Cabinet Size | 960mm x 960mm x 155mm |
| Cabinet Materials | Standard waterproof cabinets for fix installation |
| Whole Screen Specifications | |
| Screen Brightness | ≥7000cd/m2 |
| Driving Method | 1/8 scan |
| Refresh Frequency | ≥1000Hz |
| Protective Scale | IP65 front, IP54 rear |
| Life-span | ≥100,000 hours |
| Transmission Distance | Fiber < 30km, Internet cable < 100m |
Applied to indoor and outdoor places such as stations, ports, airports, meeting rooms, shopping malls, hotels, and TV stations. It serves as a high-quality video and information display solution.
