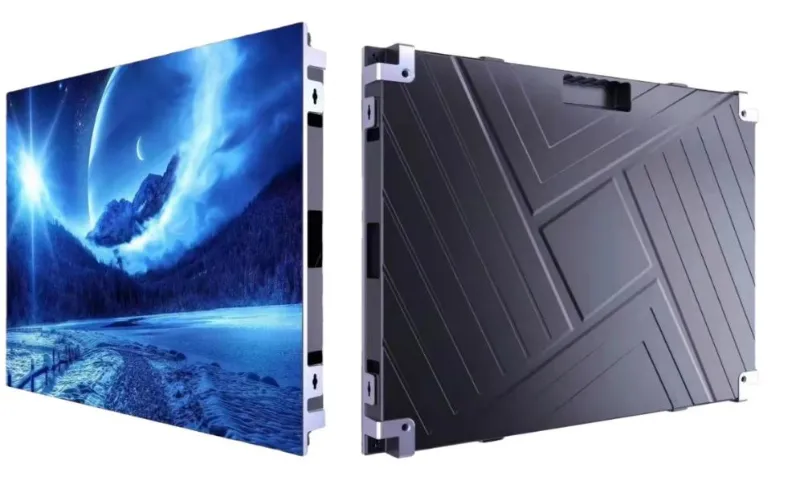

4K P1.5 P1.8 Panel de Pantalla LED de Pared de Video Magnético de Servicio Frontal Interior

1 / 5

4K P1.5 P1.8 Panel de Pantalla LED de Pared de Video Magnético de Servicio Frontal Interior

¿Aún no te decides? ¡Consigue muestras por $!

Muestra de Orden

Send Inquiry

Product Description

📊

Basic Information

Model No.

P1.53

Pixel Pitch

1.53mm

Pixel Configuration

1R, 1G, 1B

Pixel Density

422500 dots/m2

Scan Mode

1/52 scan

Screen Type

LED Video Display

Application

Scene Rendering, Advertising, Shopping Guide

IP Rating

IP40

Certification

CE, RoHS, CCC

LED Module

320*160mm

Maintenance

Front Maintenance

Origin

China

🖥️

Product Description

4K 16:9 Aluminum LED Video Wall Display for Indoor Front Service HD P1.5 P1.6 P1.8 P2 P2.5

🔶 4:3 Cabinet Format

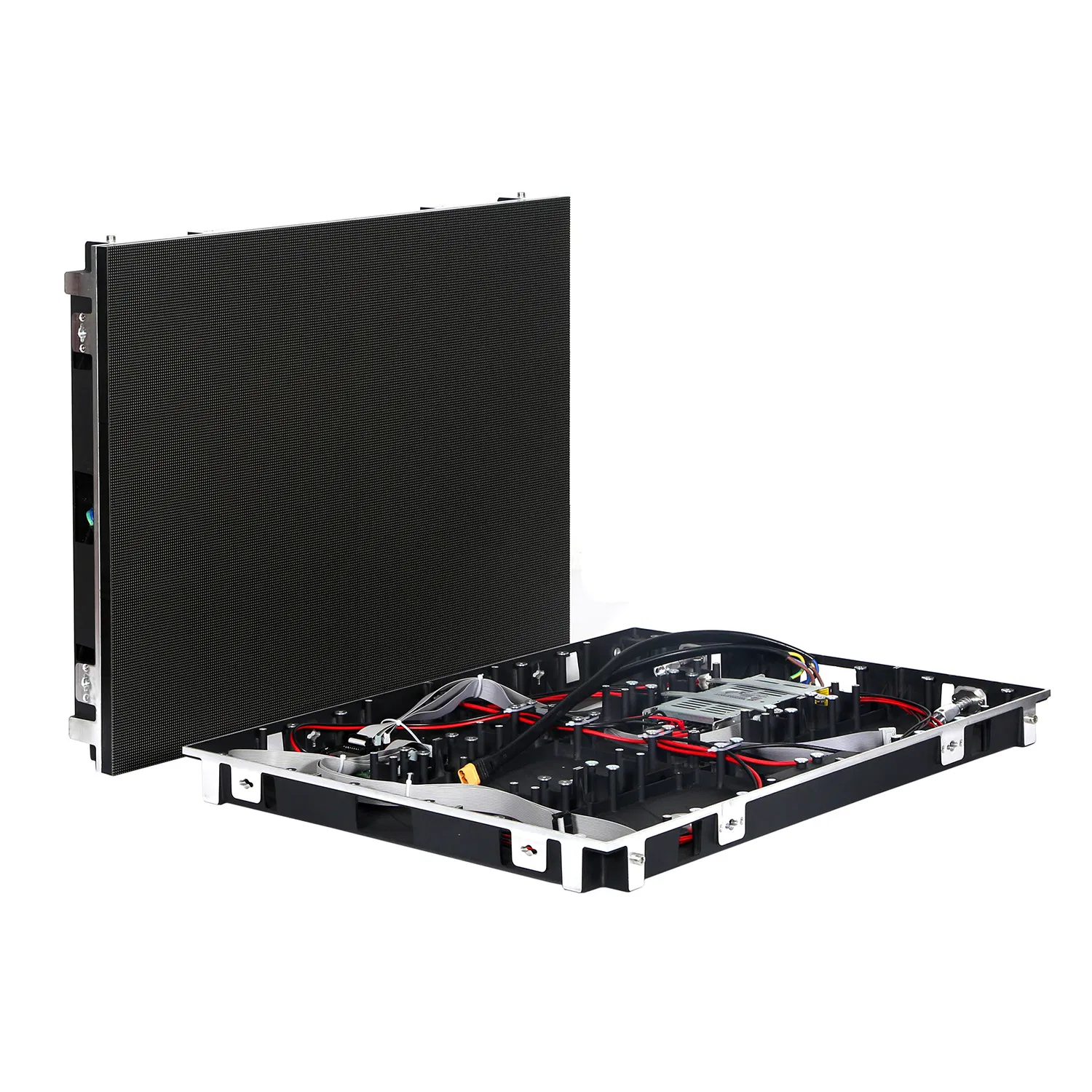

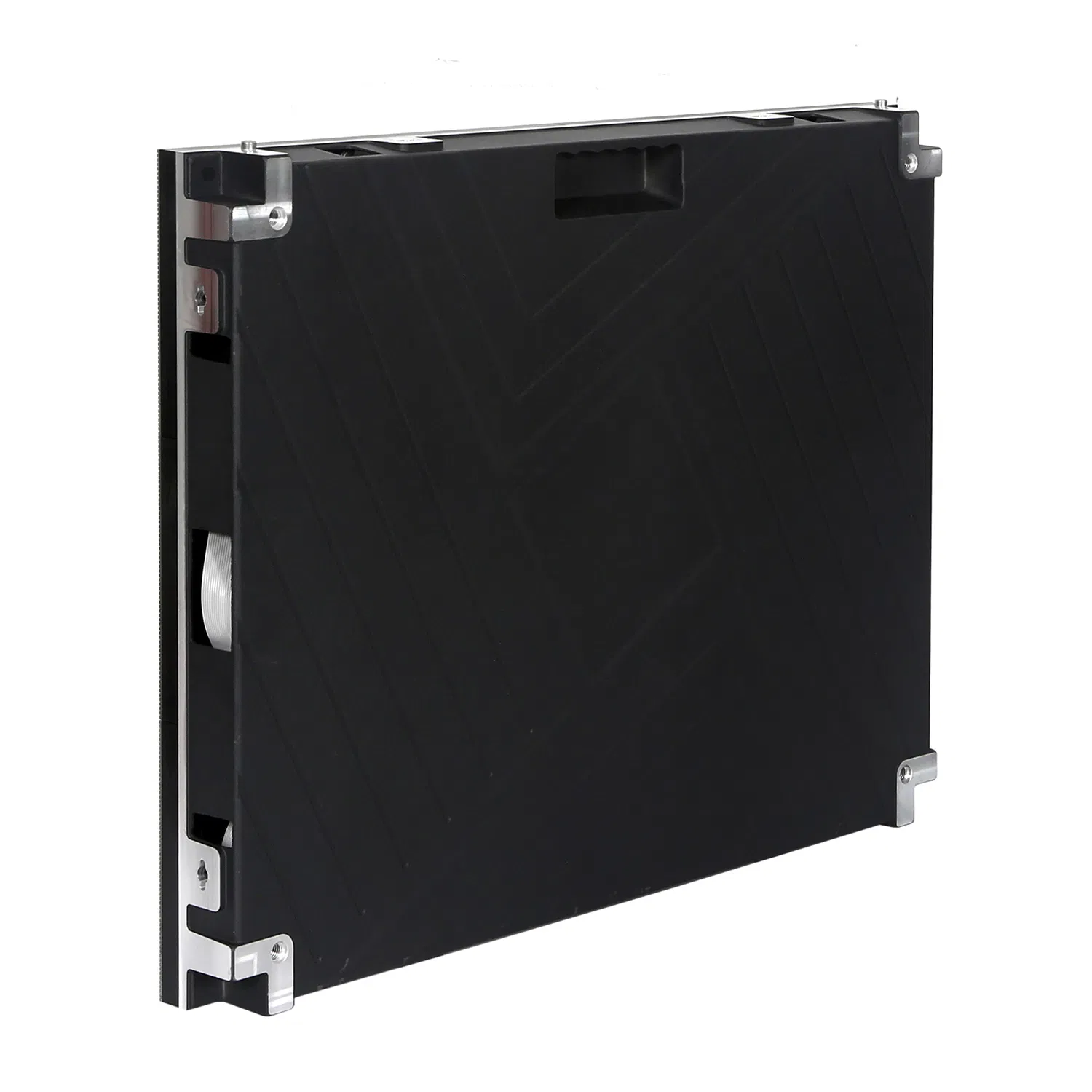

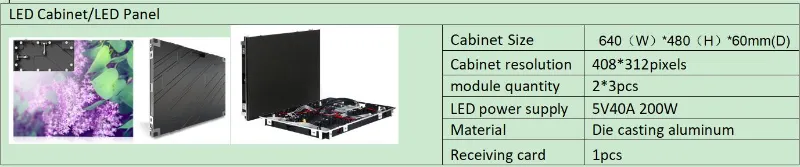

The indoor front service LED display is designed with a golden ratio of 4:3. The cabinet size is 640*480mm, specifically engineered for a variety of 4:3 and 16:9 large LED screens.

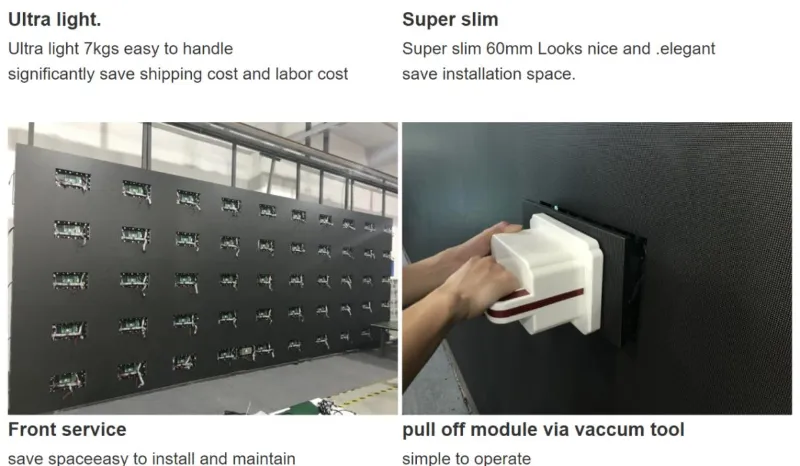

🔶 Perfect Structure Design

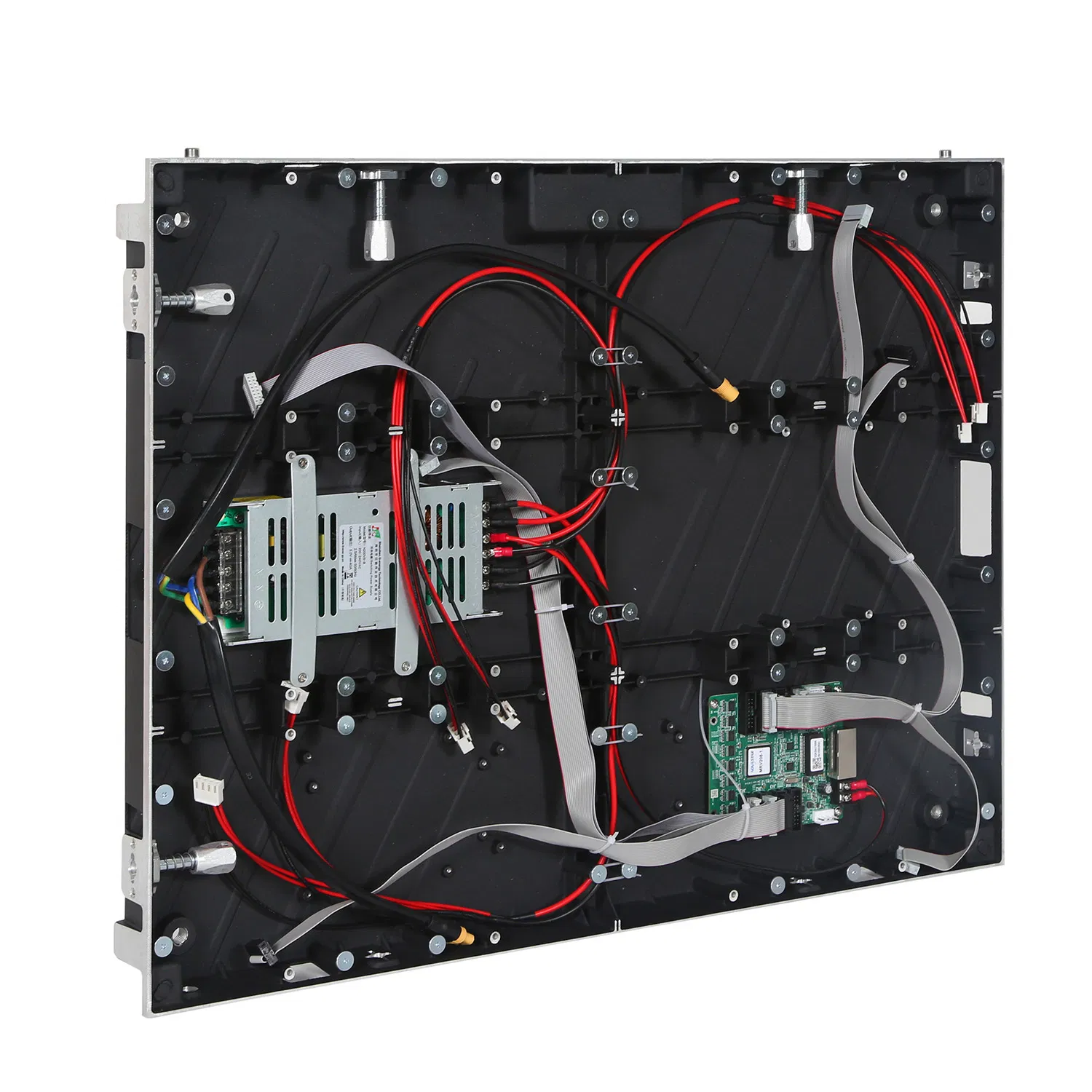

Industry-leading high-standard design for high-quality atmospheres. Die-cast aluminum bottom shell for superior heat dissipation. Features quick-lock designs for easy assembly and installation.

🛠️

Flexible Installation Options

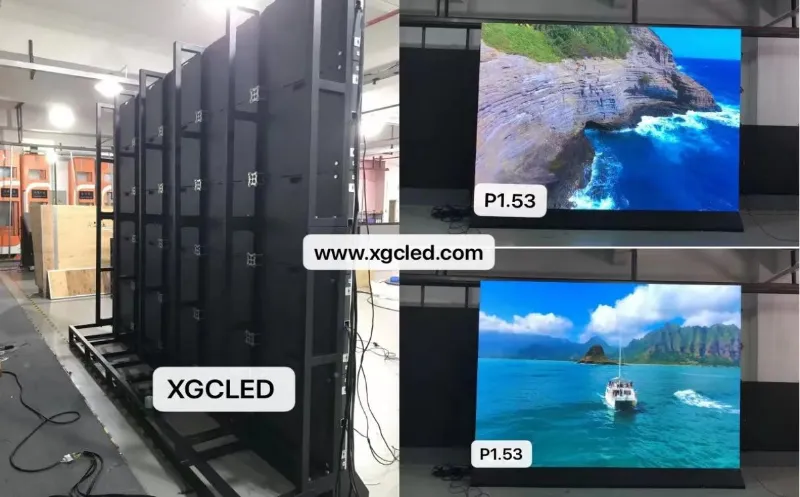

Independent / Free Standing

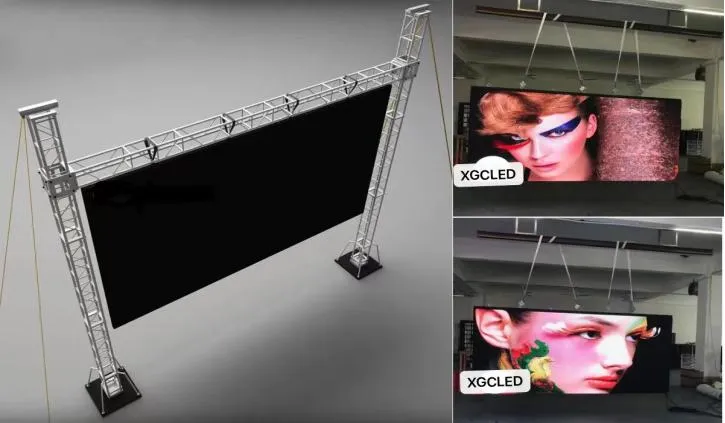

Hanging Installation

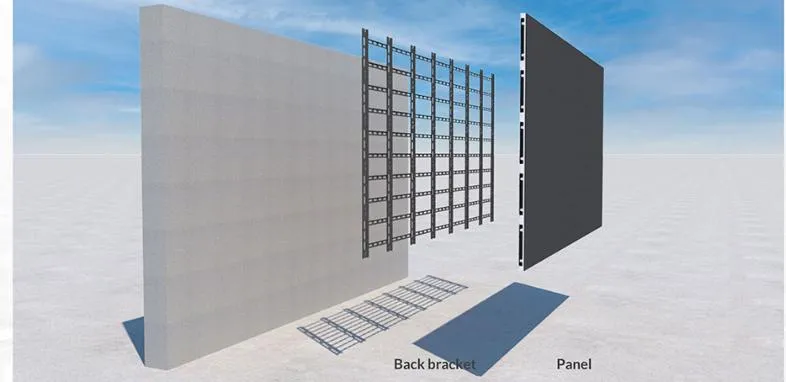

Wall Mounted

🔶 High Resolution & Refresh Rate

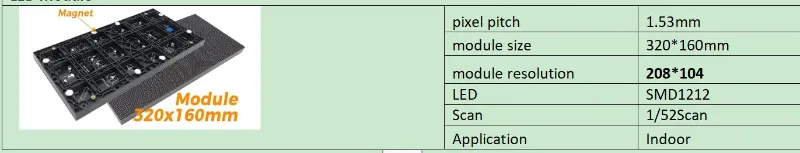

3840Hz high refresh rate and small pixel pitch for crystal clear imagery. Suitable for high-end GOB LED modules P1.25 to P2.5 with 320x160mm dimensions.

📋

Technical Specifications

Display Parameters		Operational Standards
Pixel Density	422500 dots/m2	Continuous Work Hours	>72 Hours
Average Power Consumption	200W/m2	Life Span	100,000 Hours
Max Power Consumption	700W/m2	MTBF	>10,000H
Optimal Viewing Distance	≥1.53m	IP Grade	IP40 / IP30
Brightness	≤1000 cd/m2	Working Temp	-35°C to +60°C
Refresh Rate	3840 Hz	Input Voltage	220~240V

🌟

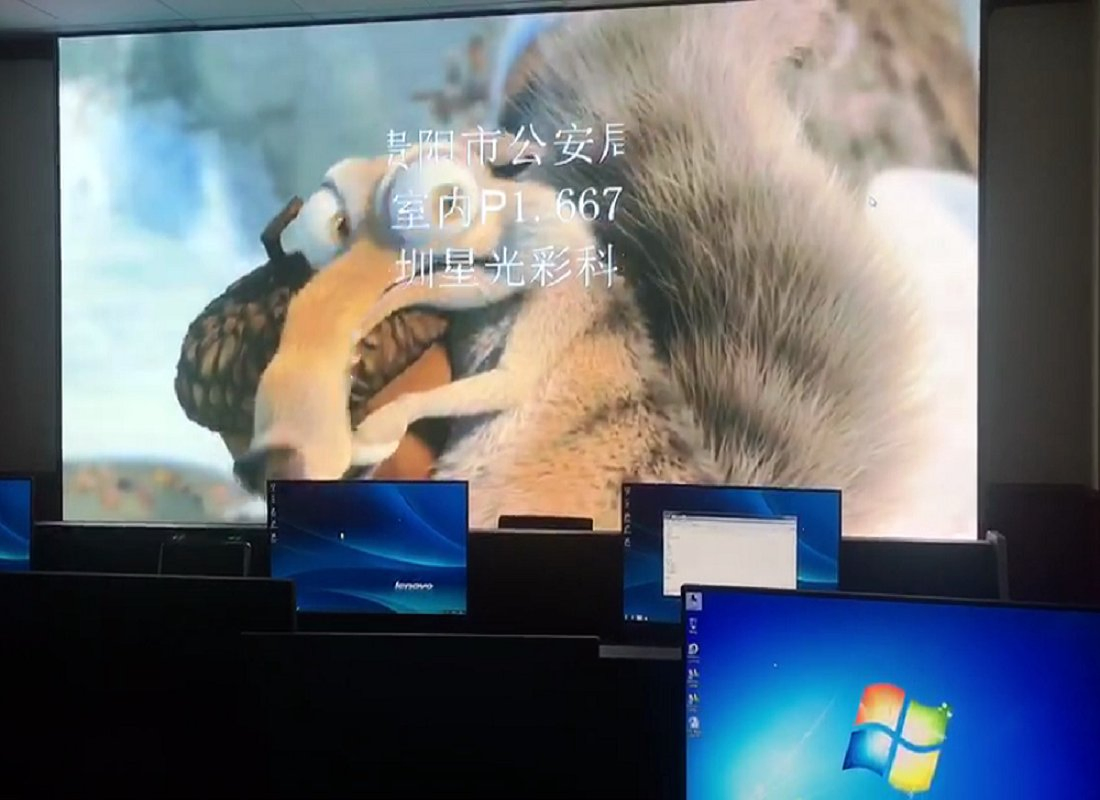

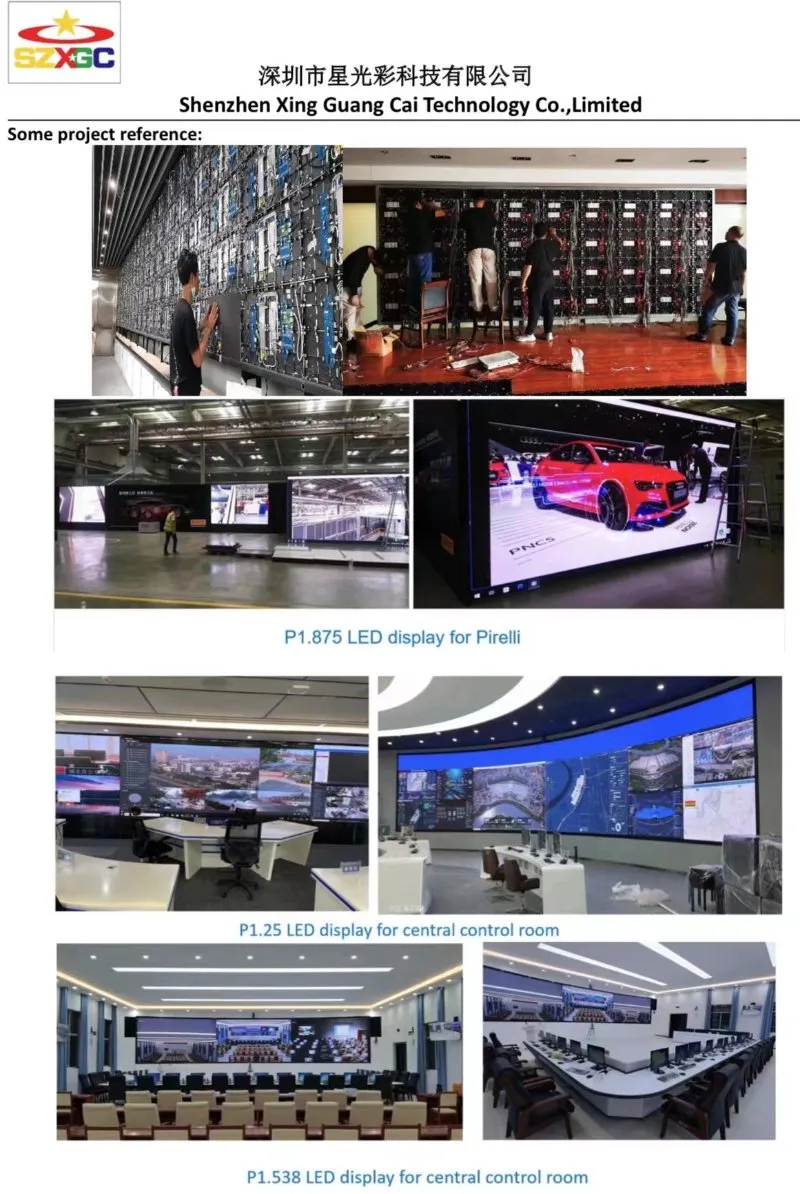

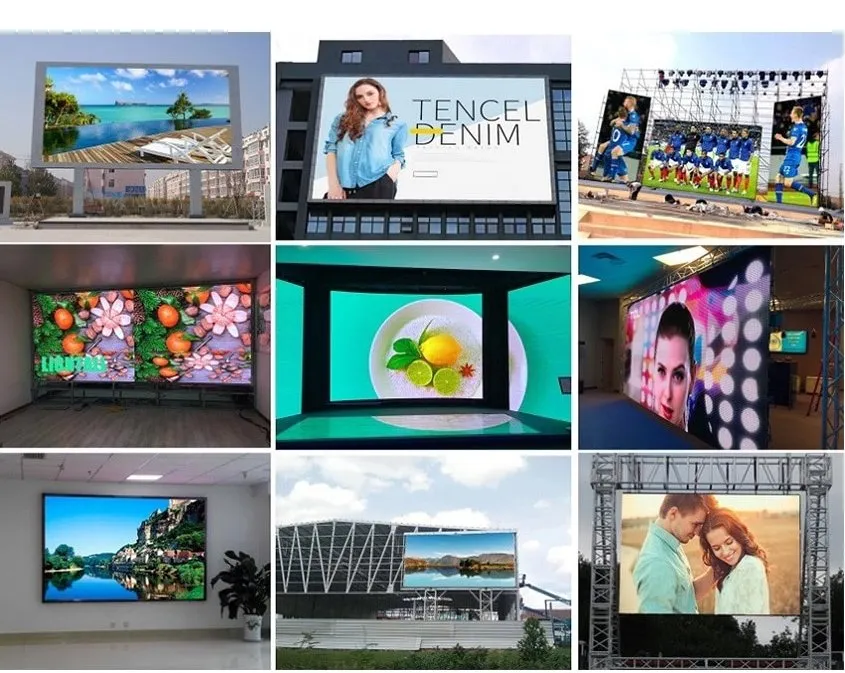

Project Cases & Quality

Certifications: CCC, CE, FCC, ROHS, ISO9001, ISO14001

🤝

Our Services

✔ 2-Year Warranty for all displays, modules, and parts.

✔ Free replacement or modification during the warranty period for any defects.

✔ Lifetime maintenance with charges only for raw materials.

✔ Free technology training (operation and maintenance) at the factory.

✔ Comprehensive documentation: manuals, software, test reports, and CAD drawings.

❓

Frequently Asked Questions

Q1: What is the pixel pitch of this model?

The pixel pitch is 1.53mm, providing high-definition visuals suitable for indoor environments.

Q2: Does it support front maintenance?

Yes, this display is designed for full front maintenance, making it easy to service even when wall-mounted.

Q3: What are the installation methods available?

This LED video wall supports multiple installation methods, including free-standing, hanging, and wall-mounted setups.

Q4: What is the refresh rate of the display?

The display features a high refresh rate of 3840Hz, ensuring smooth video playback without flicker, ideal for broadcasting and events.

Q5: What is the warranty period?

We provide a full 2-year warranty for all displays, modules, and components, with lifetime technical support.

Q6: Which control systems are compatible?

It is compatible with major LED control systems such as Novastar (MCTRL300, VX4S), Colorlight, and VDWALL processors.
